The new Toyota Tacoma has a modern drivetrain architecture designed to support a range of driving conditions, including urban use, highway travel, and off-road operation. The drivetrain system defines how engine power is transmitted to the wheels and varies by trim level and intended use. Understanding the drivetrain of this model involves examining its layout, components, and control systems.

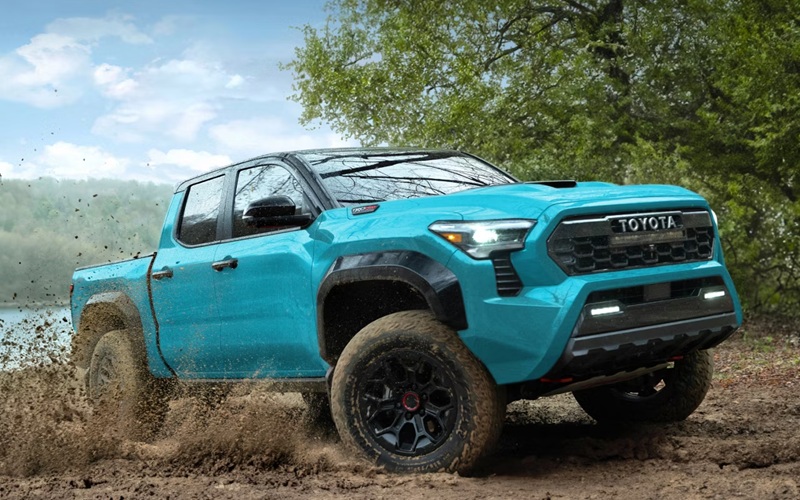

2026 Cian Toyota Tacoma
Drivetrain Architecture Overview
The drivetrain of the Toyota Tacoma is on a body-on-frame platform with a longitudinal engine layout. This configuration supports both durability and load-bearing capability.
Two primary drivetrain configurations are available:
- Rear-Wheel Drive (RWD)
- Part-Time Four-Wheel Drive (4WD)
Both systems share core components but differ in how torque is distributed to the wheels.
Engine and Transmission Integration
Powertrain Options
The drivetrain is driven by two main powertrain configurations:
2.4 L Turbocharged Petrol Engine
- Inline 4-cylinder configuration
- Turbocharged for increased torque output
- Paired with:
- 8-speed automatic transmission, or
- 6-speed manual transmission
2.4 L Hybrid System (i-FORCE MAX)
- Combines turbocharged engine with electric motor
- Integrated motor generator within transmission housing
- Uses a high-voltage battery pack
The hybrid system enhances torque delivery at low speeds and supports improved efficiency.
Transmission Systems
8-Speed Automatic Transmission
- Electronically controlled
- Torque converter-based
- Adaptive shift logic depending on load and terrain
6-Speed Manual Transmission
- Available on selected trims
- Includes automatic rev-matching in some configurations
- Direct mechanical linkage for gear selection
Rear-Wheel Drive (RWD) System
Layout and Functionality
In RWD configuration:
- Engine torque is transmitted through the transmission
- Power flows to a rear driveshaft
- Rear differential distributes torque to the rear wheels
Key Components
- Propeller shaft
- Rear differential (open or limited-slip)
- Axle shafts
RWD is typically used for:
- On-road driving
- Fuel efficiency optimization
- Reduced mechanical complexity
Four-Wheel Drive (4WD) System
System Type
The Toyota Tacoma uses a part-time 4WD system, meaning:
- Rear wheels are driven under normal conditions
- Front wheels are engaged when additional traction is required
Transfer Case
The transfer case is a central component that distributes torque between front and rear axles.
Features:
- Electronically controlled engagement
- Multiple drive modes:
- 2H (two-wheel drive high range)
- 4H (four-wheel drive high range)
- 4L (four-wheel drive low range)
Front Differential
When 4WD is engaged:
- Torque is sent to the front differential
- The differential distributes power to the front wheels
Some trims include:
- Automatic disconnecting differential (ADD)
- Electronically locking rear differential for improved traction
Low-Range Gear Reduction
In 4L mode:
- Gear reduction increases torque multiplication
- Enables operation at low speeds with higher control
This is used for:
- Steep inclines
- Rock crawling
- Deep mud or sand
Torque Distribution and Control
Electronic Control Systems
The drivetrain is managed by integrated control modules that monitor:
- Wheel speed
- Throttle input
- Steering angle
- Terrain conditions
These inputs are used to adjust:
- Torque distribution
- Gear selection
- Traction control intervention
Traction Control and Stability Systems
The Tacoma integrates drivetrain operation with:
- Traction Control System (TCS)
- Electronic Stability Control (ESC)
These systems can:
- Apply braking to individual wheels
- Reduce engine torque
- Improve grip on low-traction surfaces
Multi-Terrain Select System
Functionality
In 4WD models, the Multi-Terrain Select system allows the driver to choose predefined modes such as:
- Mud
- Sand
- Rock
- Snow
Each mode adjusts:
- Throttle sensitivity
- Transmission behavior
- Traction control thresholds
Crawl Control System
Low-Speed Off-Road Assistance
Crawl Control is an electronically managed system that:
- Automatically controls throttle and braking
- Maintains constant low speed
- Reduces driver input during technical off-road driving
It operates in conjunction with the 4WD system and low-range gearing.
Driveline Components
Driveshafts
- Steel or aluminum construction
- Transfers torque from transmission to differentials
- Designed to handle torsional stress and vibration
Differentials
Rear Differential
- Open or electronically locking
- Distributes torque between rear wheels
Front Differential
- Engaged only in 4WD mode
- Works with transfer case to deliver torque
Constant Velocity (CV) Joints
Used in front axle assemblies to:
- Allow smooth torque transfer
- Accommodate suspension movement and steering angles
Hybrid Drivetrain Integration
Electric Motor Contribution
In hybrid models:
- Electric motor provides additional torque
- Assists during acceleration and low-speed driving
Battery System
- High-voltage battery stores electrical energy
- Positioned within chassis for weight distribution
Power Management
The system determines optimal use of:
- Internal combustion engine
- Electric motor
- Regenerative braking
This integration improves:
- Torque delivery
- Energy efficiency
- Drivetrain responsiveness
Cooling and Lubrication Systems
Transmission Cooling
- Fluid-based cooling system
- Maintains operating temperature under load
Differential Lubrication
- Gear oil reduces friction and wear
- Requires periodic maintenance
Transfer Case Lubrication
- Ensures smooth gear operation
- Critical for durability in 4WD use
Structural Integration
Frame and Mounting
The drivetrain components are mounted to a ladder frame:
- Provides rigidity
- Supports towing and payload capacity
- Isolates vibrations
Suspension Interaction
The drivetrain works alongside:
- Front independent suspension
- Rear solid axle
This configuration supports:
- Load handling
- Off-road articulation
Operational Considerations
Mode Selection
Drivers must select appropriate drivetrain modes based on conditions:
- 2H for normal driving
- 4H for slippery surfaces
- 4L for extreme off-road conditions
Maintenance Requirements
Regular maintenance includes:
- Transmission fluid inspection
- Differential oil replacement
- Transfer case servicing
At service facilities such as Don Valley North Toyota, drivetrain diagnostics may include electronic system checks and mechanical inspections.
System Limitations
- Part-time 4WD should not be used on dry pavement in locked mode
- Improper mode selection can lead to driveline stress
- Hybrid systems add complexity, requiring specialized servicing
Engineering Objectives
The drivetrain of the Toyota Tacoma achieves:
- Balanced torque delivery
- Off-road capability
- Mechanical durability
- Adaptability across driving conditions
In technical service environments such as Don Valley North Toyota, these systems are evaluated using manufacturer-specific diagnostic tools to ensure proper operation.
2026 Toyota Tacoma FAQ
What drivetrain options are available in the 2026 Toyota Tacoma?
The vehicle offers rear-wheel drive (RWD) and part-time four-wheel drive (4WD) configurations.
Does the Tacoma use a full-time or part-time 4WD system?
It uses a part-time 4WD system in which the front axle is engaged only when needed.
What engines are compatible with the drivetrain?
The drivetrain supports a 2.4 L turbocharged petrol engine and a hybrid system with an integrated electric motor.
What is the function of the transfer case?
The transfer case distributes torque between the front and rear axles and provides selectable drive modes, including low-range gearing.
How does the hybrid system affect the drivetrain?
The hybrid system adds an electric motor that assists with torque delivery and improves efficiency while integrating with the transmission system.
