The Toyota Tundra has evolved significantly since its introduction, with each generation showcasing advancements in towing capability, powertrain technology, and structural engineering. This full-size pickup truck has steadily increased its hauling prowess, transforming from a modest workhorse into a formidable towing platform capable of handling substantial loads. Examining the progression of the Tundra towing capacity across its generations reveals the Toyota commitment to enhancing this critical truck capability.

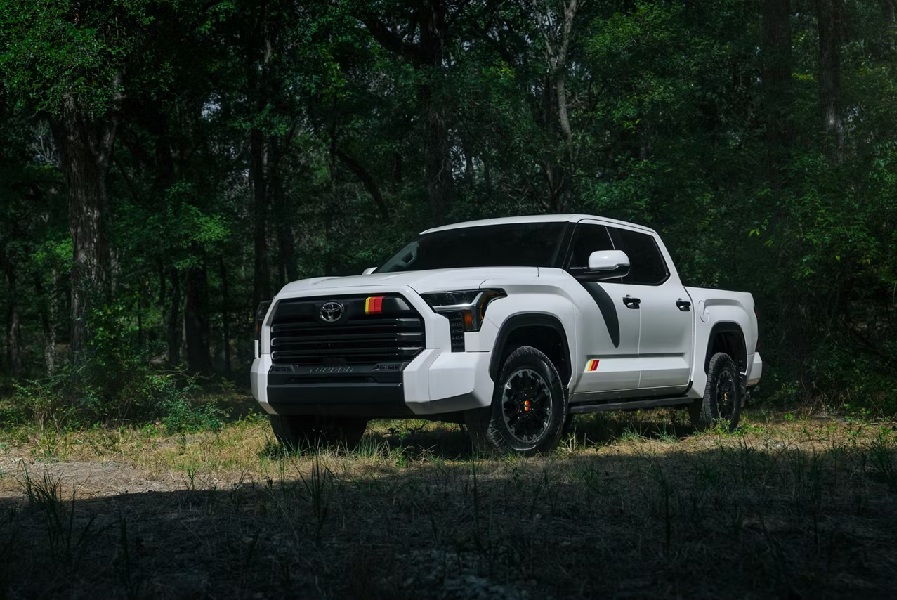

205 White Toyota Tundra
First Generation (2000-2006)
The inaugural Tundra, while smaller than its domestic competitors, established the Toyota entry into the full-size pickup segment. Early models featured modest towing capabilities:
- Initial models (2000-2002): Maximum towing capacity of approximately 2,313 kg with the 4.7L V8 engine
- Mid-cycle refresh (2003-2006): Improved capacity up to 3,175 kg with towing package upgrades
- Limited by its smaller frame dimensions and 4.7L V8 engine producing 245 horsepower and 427 Nm of torque
The first-generation Tundra utilized a 4-speed automatic transmission, which limited its towing capability compared to competitors. However, it established a reputation for reliability that would become a hallmark of the Tundra nameplate. The towing package included transmission and oil coolers, a higher-capacity alternator, and upgraded rear springs.
Second Generation (2007-2021)
The second-generation Tundra represented a significant leap forward, with Toyota designing a substantially larger truck to compete directly with North American full-size pickups:
- Initial release (2007-2010): Maximum towing capacity of 4,762 kg with the 5.7L V8 engine
- Mid-cycle update (2011-2013): Improved to 4,899 kg with enhanced cooling systems
- Second update (2014-2021): Further increased to 5,670 kg with structural reinforcements
This generation introduced the powerful 5.7L iForce V8 engine, producing 381 horsepower and 544 Nm of torque, paired with a 6-speed automatic transmission. The significant increase in towing capacity was supported by:
- A fully boxed ladder frame with additional cross members
- Larger disc brakes (front and rear) for improved stopping power
- TOW/HAUL mode for optimized transmission shift points
- Available integrated trailer brake controller
- Heavy-duty cooling system with engine and transmission oil coolers
The second generation’s long production run saw incremental improvements to its towing capabilities, primarily through frame reinforcements, powertrain refinements, and enhanced cooling capacity.
Third Generation (2022-Present)
The current Tundra generation represents the most substantial advancement in towing capability in the model’s history:
- Base twin-turbocharged 3.5L V6: Maximum towing capacity of 5,987 kg
- Hybrid i-FORCE MAX powertrain: Enhanced capability up to 5,443 kg with improved fuel efficiency
- TRD Pro and off-road oriented trims: Approximately 5,216 kg due to specialized equipment
The third-generation Tundra abandons the traditional V8 in favour of a twin-turbocharged V6 engine producing 389 horsepower and 649 Nm of torque in standard form. The hybrid variant increases output to 437 horsepower and 790 Nm of torque. Both have a 10-speed automatic transmission.
Several key technologies enhance this generation’s towing capabilities:
- Fully redesigned high-strength boxed steel ladder frame
- Multi-link rear suspension replaces traditional leaf springs
- Panoramic View Monitor with hitch guidance for trailer connection
- Trailer Backup Guide system for reversing assistance
- Integrated Trailer Brake Controller with programmable settings
- Blind Spot Monitor system that accounts for trailer length
- Tow/Haul+ mode for maximum towing performance
The third-generation Tundra also features a Trailer Garage function in the infotainment system, allowing drivers to store multiple trailer profiles with specific dimensions and settings.
Comparative Analysis Across Generations
The evolution of the Tundra towing capacity demonstrates the Toyota commitment to enhancing this critical truck capability:
| Generation | Years | Maximum Towing Capacity | Percentage Increase |
| First | 2000-2006 | 3,175 kg | Baseline |
| Second | 2007-2021 | 5,670 kg | 78.6% |
| Third | 2022-Present | 5,987 kg | 5.6% (from Second) |
This progression reflects not only increases in raw capability but also significant advancements in towing technology, safety features, and driver assistance systems that make towing more accessible and secure for owners.
Top 5 Best Features of Toyota Tundra Towing Systems
- Multi-Terrain Select with Crawl Control – This integrated system, available on the latest generation, automatically manages throttle and braking while towing in challenging off-road conditions, allowing the driver to focus on steering.
- Integrated Trailer Brake Controller – Factory-installed and fully integrated with the vehicle’s systems, providing smooth, proportional trailer brake application that’s adjustable from the cabin.
- Panoramic View Monitor with Trailer Guidance – Provides multiple camera angles, including overhead, rear, side, and front views to assist with trailer connection and maneuvering in tight spaces.
- Adaptive Variable Suspension System – Available on select third-generation models, this system automatically adjusts damping force based on load conditions, maintaining optimal ride height and stability when towing.
- Tow/Haul+ Mode – Enhanced for the third-generation Tundra, this specialized driving mode optimizes transmission shift points, throttle response, and stability control settings specifically for maximum towing performance.
5 Facts About Toyota Tundra Towing Capacity
- The third-generation Tundra was the first full-size Toyota pickup to utilize a turbocharged engine for towing, representing a significant departure from the traditional V8 powerplants of previous generations.
- Engineers tested the latest Tundra towing capabilities in extreme conditions, including Death Valley at temperatures exceeding 49°C while climbing 7% grades with maximum loads.
- Despite having a lower horsepower rating than the previous 5.7L V8, the twin-turbocharged V6 in the third-generation Tundra delivers 24% more torque at significantly lower RPM, resulting in improved towing performance.
- The Tundra development team conducted over 1.6 million kilometers of real-world towing testing during the development of the third generation, using trailers of various sizes and weights.
- While the hybrid powertrain offers more power and torque than the standard turbocharged V6, its maximum towing capacity is slightly lower due to the additional weight of the hybrid components and their cooling requirements.
Questions and Answers About Toyota Tundra Towing Capacity
How has the Toyota Tundra maximum towing capacity changed from the first generation to the current model?
The maximum towing capacity has increased dramatically, from approximately 3,175 kg in the first generation (2000-2006) to 5,987 kg in the current third generation. This represents an 88% increase in maximum towing capability over the model’s lifetime.
Does the hybrid powertrain in the new Tundra affect towing capacity compared to the non-hybrid version?
Yes, the i-FORCE MAX hybrid powertrain in the third-generation model has a slightly lower maximum towing capacity (5,443 kg) compared to the standard twin-turbocharged V6 (5,987 kg), despite producing more power and torque. This is primarily due to the additional weight of the hybrid system components.
What major engineering changes allowed for the significant towing capacity increase between the first and second generation Tundras?
The second-generation model featured a fully boxed ladder frame (versus the partially boxed frame of the first generation), a more powerful 5.7L V8 engine, larger brakes, and a more robust cooling system. The truck was also significantly larger overall, with a longer wheelbase and wider track for improved stability when towing.
How does the towing capacity of TRD Pro and off-road models compare to standard Tundra models?
TRD Pro and other off-road-oriented models typically have a lower maximum towing capacity (around 5,216 kg in the current generation) compared to standard models. This reduction is due to the specialized off-road equipment, different suspension tuning, and all-terrain tires that prioritize off-road capability over maximum towing performance.
What towing-specific technology was introduced in the third-generation Tundra that wasn’t available in previous generations?
The third-generation model introduced several new towing technologies, including the Panoramic View Monitor with Trailer Guidance, Straight Path Assist, Trailer Backup Guide, and the ability to store multiple trailer profiles in the vehicle’s memory. It also features a blind spot monitoring system that can be adjusted for different trailer lengths.
How does the multi-link rear suspension in the newest Tundra affect towing compared to the leaf spring setup in previous generations?
The multi-link rear suspension provides better ride quality, improved handling, and more consistent traction when towing compared to traditional leaf springs. It maintains better contact between the tires and road surface during cornering and over uneven terrain, enhancing stability with a trailer. The air suspension option also allows for automatic load-levelling capability.
What is the difference between the regular Tow/Haul mode and Tow/Haul+ mode in the third-generation Tundra?
Standard Tow/Haul mode adjusts transmission shift points, throttle response, and stability control for general towing conditions. Tow/Haul+ mode, available in the third-generation model, provides more aggressive calibration specifically for maximum towing performance, particularly when hauling the heaviest loads or traversing steep grades.
Has the fuel economy while towing improved across Tundra generations?
Yes, towing fuel economy has improved significantly, particularly with the third-generation models. The twin-turbocharged V6 and especially the hybrid powertrain offer better fuel efficiency when towing compared to the previous V8 engines, while delivering more torque at lower RPM for improved towing performance.
What preparation package is recommended for achieving maximum towing capacity in the current Tundra?
To achieve maximum towing capacity in the third-generation model, the factory towing package is required. This includes an integrated trailer brake controller, heavy-duty cooling system, Tow/Haul+ mode, trailer backup guidance system, and a specific 3.31 rear axle ratio (non-hybrid models).
How does the towing capacity of the Tundra compare when choosing between 4×2 and 4×4 drivetrain configurations?
Two-wheel drive (4×2) models typically offer higher maximum towing capacities than their four-wheel drive (4×4) counterparts with the same engine and configuration. This difference ranges from 136 to 272 kg, depending on the specific model, primarily due to the additional weight of the 4×4 system components.
