The Toyota RAV4 Hybrid uses a regenerative braking system combined with a conventional hydraulic brake system. This design supports energy recovery during deceleration and maintains consistent braking performance in daily driving conditions.

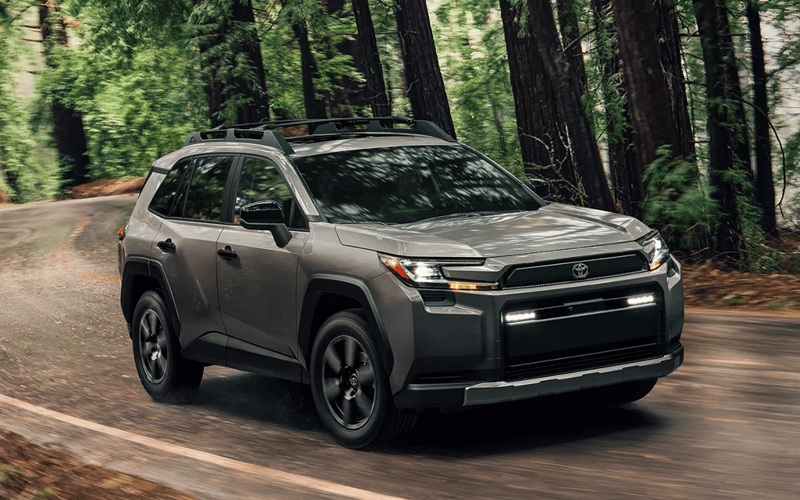

2026 Grey Toyota R4V4
The system works with the vehicle’s hybrid components, including the electric motor, hybrid battery, and electronic brake control unit. Together, these parts manage braking force and energy flow.
RAV4 Regenerative Braking Function
Regenerative braking captures kinetic energy during deceleration. Instead of wasting this energy as heat, the system converts part of it into electricity.
How the Process Works
When the driver presses the brake pedal or releases the accelerator:
- The electric motor operates as a generator.
- The vehicle’s forward motion turns the motor.
- Electrical energy flows to the hybrid battery.
- The battery stores this energy for later use.
This process reduces the load on the gasoline engine and improves overall efficiency.
Regenerative braking is most noticeable at lower to moderate speeds and during gradual deceleration.
Hydraulic Brake System
The Toyota RAV4 Hybrid also uses a conventional hydraulic brake system. This system includes:
- Disc brakes at the front
- Disc brakes at the rear
- Brake calipers
- Brake pads
- Brake rotors
- Brake fluid and hydraulic lines
The hydraulic system provides strong stopping force, especially during:
- Sudden braking
- High-speed deceleration
- Emergency situations
The vehicle’s electronic control system blends regenerative and hydraulic braking as needed.
Brake Blending Control
The hybrid braking system uses electronic brake control to determine how much regenerative braking and hydraulic braking to apply.
Electronic Control Role
The control unit monitors:
- Vehicle speed
- Brake pedal input
- Battery charge level
- Road conditions
Based on these inputs, the system distributes braking force between the electric motor and hydraulic components.
This blending occurs automatically. The driver does not need to select a specific mode.
The transition between regenerative and friction braking is designed to remain smooth and consistent.
Anti-lock Braking System (ABS)
The Toyota RAV4 Hybrid includes an Anti-lock Braking System (ABS).
ABS helps prevent wheel lock during hard braking. Sensors detect wheel speed and adjust brake pressure when necessary.
This feature supports:
- Steering control during emergency braking
- Reduced risk of skidding on low-traction surfaces
ABS works with both regenerative and hydraulic braking functions.
Electronic Brake-force Distribution (EBD)
Electronic Brake-force Distribution (EBD) adjusts braking force between the front and rear wheels.
The system considers:
- Vehicle load
- Road surface conditions
- Deceleration rate
EBD supports balanced braking performance and helps maintain vehicle stability.
Brake Assist
Brake Assist detects rapid brake pedal application that may indicate an emergency stop.
If the system senses sudden pedal input:
- It increases hydraulic brake pressure.
- It supports maximum stopping force.
Brake Assist functions alongside ABS and EBD.
Hybrid Battery and Energy Storage
The regenerative braking system sends recovered energy to the hybrid battery.
The battery:
- Stores electrical energy from braking
- Supplies power to the electric motor
- Reduces fuel consumption
The amount of recovered energy depends on:
- Driving speed
- Frequency of deceleration
- Battery charge condition
When the battery reaches a high charge level, regenerative braking capacity may decrease, and the system relies more on hydraulic braking.
Brake Pedal Feel and System Integration
The brake pedal in the Toyota RAV4 Hybrid connects to an electronically controlled braking system.
In many driving situations:
- Initial pedal input activates regenerative braking.
- Increased pedal pressure adds hydraulic braking.
The electronic system manages this transition.
Drivers may notice a slightly different pedal response compared to a non-hybrid model. This difference relates to energy recovery and brake blending control.
Maintenance Considerations
Hybrid braking systems can influence brake wear patterns.
Reduced Brake Pad Wear
Because regenerative braking handles part of the deceleration:
- Brake pads and rotors may experience less wear in certain driving conditions.
- Urban driving may increase energy recovery frequency.
However, hydraulic components still require regular inspection.
Routine brake maintenance includes:
- Pad thickness inspection
- Rotor condition check
- Brake fluid inspection
Service intervals depend on driving habits and operating conditions.
Performance in Different Driving Conditions
City Driving
Frequent stops increase regenerative braking use. Energy recovery occurs more often during traffic and short trips.
Highway Driving
At higher speeds, hydraulic braking may contribute more during firm deceleration. Regenerative braking remains active during gradual speed reduction.
Slippery Surfaces
ABS and electronic brake control support stability on wet or icy roads. The system adjusts brake pressure to maintain traction.
Safety System Integration
The hybrid braking system integrates with other safety technologies.
These systems may include:
- Vehicle Stability Control
- Traction Control
When wheel slip or instability occurs, the electronic control system can adjust brake force at individual wheels.
This coordination supports controlled deceleration and directional stability.
Key Characteristics of the 2026 Toyota RAV4 Hybrid Braking System
- Combination of regenerative and hydraulic braking
- Electronic brake blending control
- Disc brakes at front and rear
- Anti-lock Braking System (ABS)
- Electronic Brake-force Distribution (EBD)
- Brake Assist function
- Energy recovery to hybrid battery
The system operates automatically without driver intervention.
Questions and Answers
What type of braking system does the 2026 Toyota RAV4 Hybrid use?
- It uses a combination of regenerative braking and a conventional hydraulic brake system.
What happens during regenerative braking?
- The electric motor operates as a generator, converting kinetic energy into electricity that the hybrid battery stores.
When does the hydraulic brake system provide most of the stopping force?
- It provides strong stopping force during sudden braking, high-speed deceleration, and emergency situations.
What role does electronic brake control play?
- It monitors vehicle speed, brake input, battery charge level, and road conditions to distribute braking force between regenerative and hydraulic systems.
Does regenerative braking affect brake pad wear?
- Yes. Because regenerative braking handles part of deceleration, brake pads and rotors may experience less wear in certain driving conditions.
